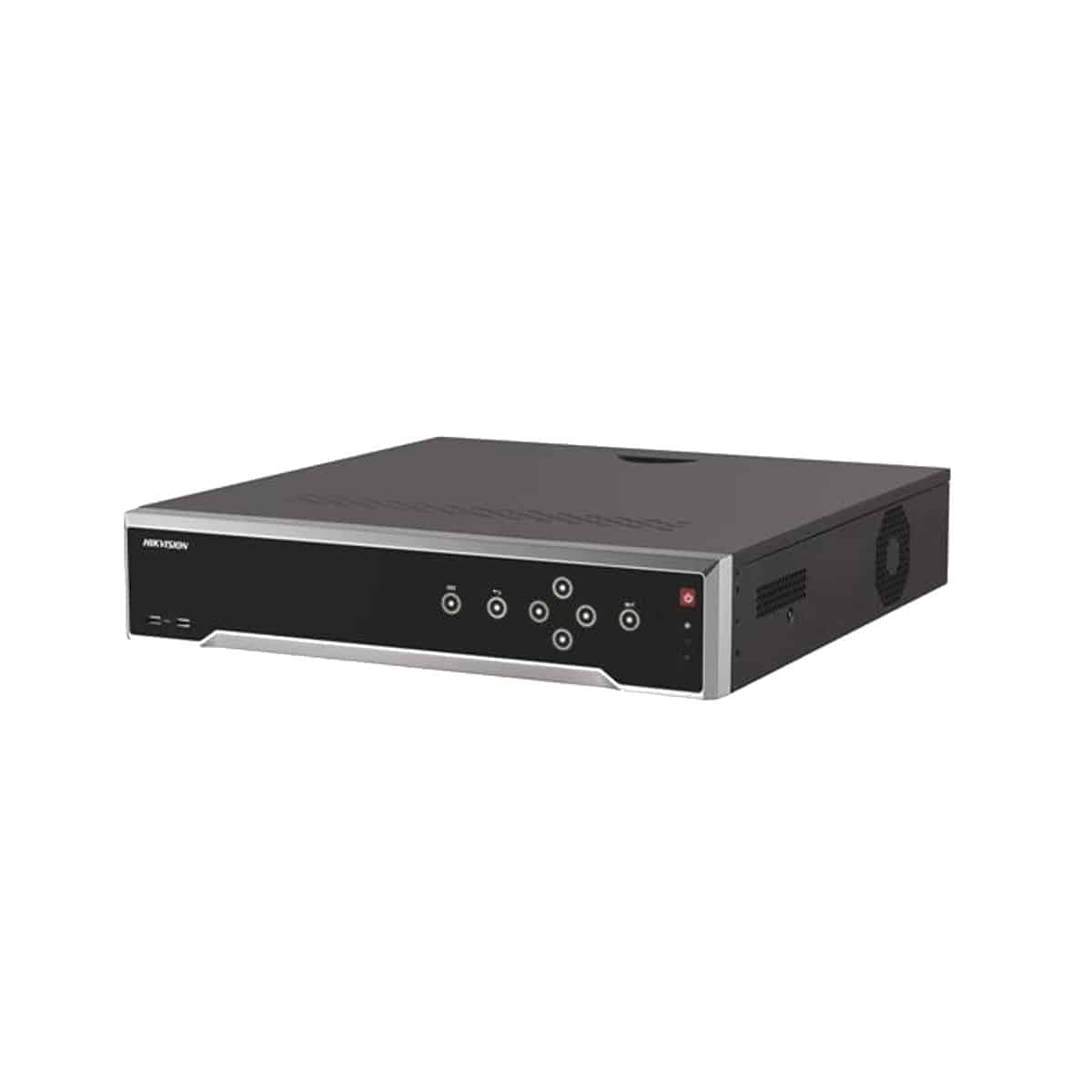

NVR 16CH 4K / 16 POE / 4 HDD / H265+ / DS-7716NI-I4/16P/ HIKVISION
NVR 16CH 4K / 16 POE / 4 HDD / H265+ / DS-7716NI-I4/16P/ HIKVISION
Embedded Plug & Play 4K NVR
• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)resolution
• 16/32-ch network cameras can be connected with
160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Plug & Play with up to 16 independent PoE network
interfaces
• Support dual-os to ensure high reliablility of system running
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 32-ch | |
| Network | ||
|---|---|---|
| Remote connection: | 128 | |
| Incoming bandwidth: | 512Mbps or 400Mbps(when RAID is enabled) | |
| Outgoing bandwidth: | 256Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (2.0Vp-p, 1KΩ) | |
| Synchronous Playback: | 16-ch | |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Decoding | ||
|---|---|---|
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Capability: | 4-ch@8MP,16-ch@1080P | |
| Hard Disk | ||
|---|---|---|
| SATA: | 4 SATA interfaces for 4HDDs | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface | |
| Serial Interface: | RS-232; RS-485; | |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Alarm In: | 16-ch | |
| Alarm Out: | 4-ch | |
| POE | ||
|---|---|---|
| Supported Standard: | AF and AT | |
| Interface: | 24 independent 10/100 Mbps PoE Ethernet interfaces | |
| Max. Power: | 200W | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Consumption(without hard disk and POE): | ≤20 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 1.5U chassis | |
| Dimensions: | 445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″) | |
| Weight(without HDD): | ≤ 5 Kg (11 lb) | |
