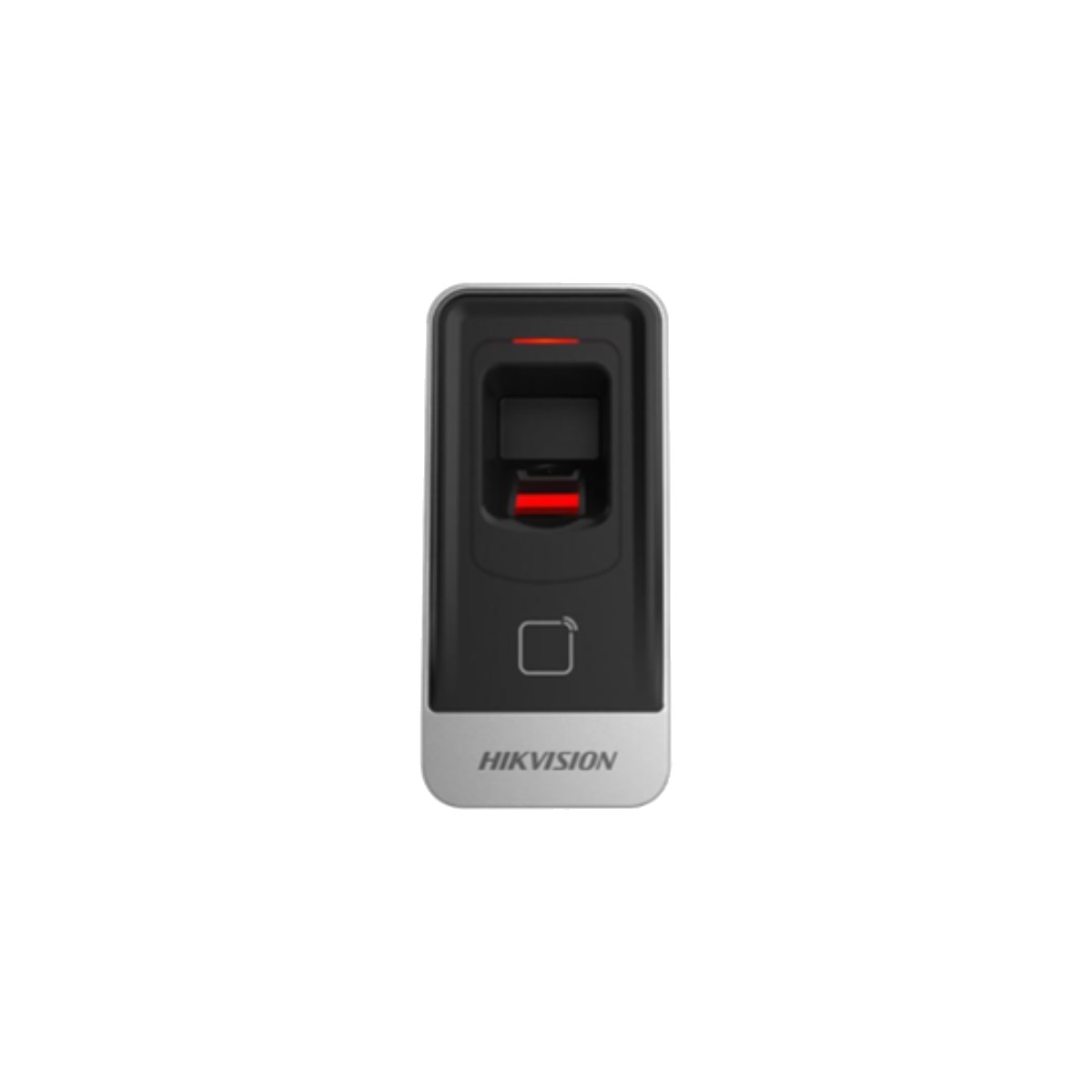

LECTOR DE HUELLAS Y DE TARJETAS MIFARE / DS-K1201AMF / HIKVISION
LECTOR DE HUELLAS Y DE TARJETAS MIFARE / DS-K1201AMF / HIKVISION
Lector de huellas (Cap. 5000) y proximidad de tarjetas MIFARE,
soporta protocolo RS485 (privativo Hikvision), IP65
| System Parameters |
| Comparison Mode: |
|
1:1/1:N |
| Comparison Time: |
|
1:1≤1s; 1:3000≤1.5s |
| Fingerprint Module: |
|
Optical, Red Backlight |
| FRR (False Rejection Rate): |
|
≤0.01% |
| Card Reading Distance: |
|
EM Card: ≤100 mm (≤3.94″) Mifare Card:≤50 mm (≤1.97″) |
| FAR (False Accept Rate): |
|
≤0.001% |
| Card Reading Mode: |
|
Build-in EM or Mifare Reading Module |
| Fingerprint Capacity: |
|
5,000 |
| Processor: |
|
32 Bit High-performance Processor |
| Device Interfaces |
| Communication Mode: |
|
RS-485 |
| Transmission Rate: |
|
19200bps-N-8-1 |
| General |
| Mounting Method: |
|
Surface Mounting |
| Alarm: |
|
Tamper Alarm × 1 |
| Power Supply: |
|
12VDC |
| Prompt: |
|
Buzzer |
| LED Indicator: |
|
Power Indicator; Status LED Indicator |
| Protection Level: |
|
IP 65 Water-Proof |
| Working Humidity: |
|
10% to 90% (Non-Condensing) |
| Working Temperature : |
|
-40°C to +70°C (-40°F to +158°F) |
| Dimensions (L×W×H): |
|
62mm × 132mm × 44mm (2.44″ × 5.20″ × 1.73″) |
