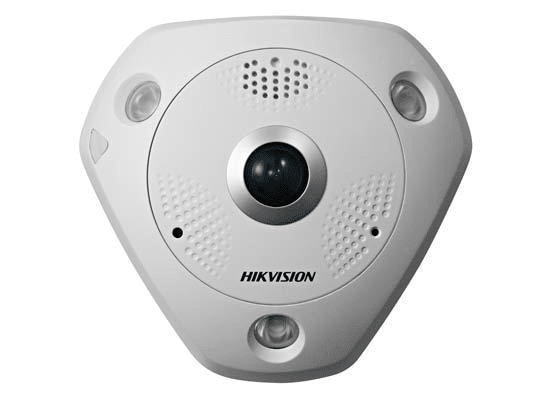

Domo IP Ojo de Pez, 6MP, IR 15m hikvision DS-2CD6365G0-
IVS 1.27mm
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.8″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.05 Lux @(F1.2,AGC ON), 0.3Lux @ (F2.0,AGC ON ), 0 lux with IR |
|
| Shutter time: | 1/25(1/30) s to 1/100,000 s | |
| Lens: | 1.27mm, F2.8 Angle of view: 180°(wall mount), 360°(ceiling mount) |
|
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264+/H.264/MJPEG, Support H.264+ only when the display mode is Fisheye View | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 3072 x 2048 | |
| Frame Rate: | Main Stream: 50Hz: 25fps (3027 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 24fps (3027 × 2048), 30fps (2048 × 2048, 1280 × 1280) |
|
| Sub Stream: | 50Hz: 12.5fps (720 × 720, 704 × 576) 60Hz: 15fps (720 × 720, 704 × 480) |
|
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| ROI: | Support | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
|
| General Function: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | Internal Microphone and Speaker | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 12 W | |
| Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, IK10 | |
| Weather Proof: | IP66 | |
| IR Range: | 15 meters | |
| Dimensions: | 164×152.8×43.8mm(6.46”x6.02”x1.72”) | |
| Weight: | 1400g | |
| NOTE：: | * «-S» series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface | |
