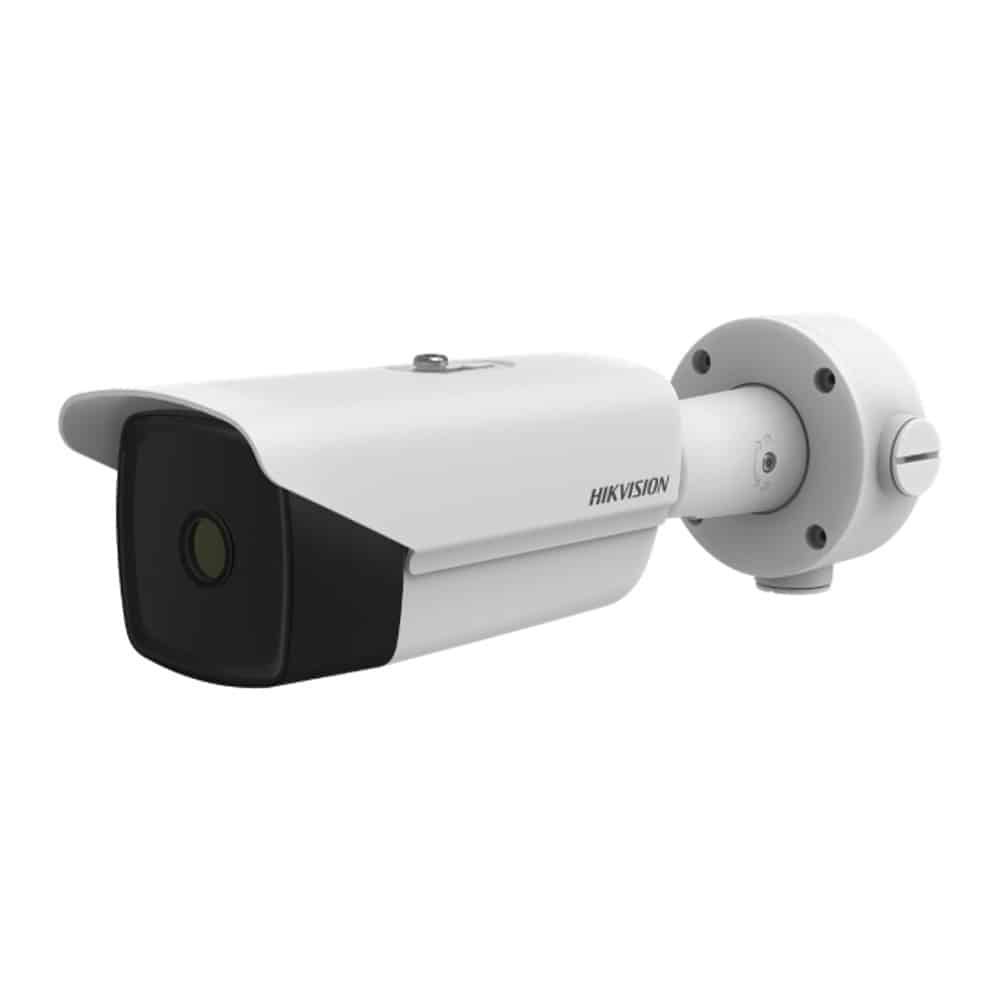

CAMARA IP TERMAL BULLET- Lente de 25mm. HIKVISION DS-2TD2136-35/V1
CAMARA IP TERMAL BULLET- Lente de 25mm. HIKVISION DS-2TD2136-35/V1
Smart Function (Thermal Imaging)
l Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C,F#=1.0)
l Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
l Reliable temperature exception alarm function
l Advanced fire detection algorithm
Thermal Imaging Module Function
l 384*288 resolution, high sensitivity sensor, support contrast adjustment
l Shutter adjustment in various modes
l 3D DNR, 15 palettes of color adjustable, image detail enhancement
l 7mm, 10mm,15mm, 25mm,35mm lens are optional
| Thermal | ||
|---|---|---|
| Image sensor: | Vanadium Oxide Uncooled Focal Plane Arrays | |
| NETD: | < 40mk(@25°C,F#=1.0) | |
| F number: | 1.0 | |
| Compression Standard | ||
|---|---|---|
| Main Stream: | 50fps(384 × 288) | |
| Sub Stream: | 50fps(384 × 288) | |
| Video Compression: | H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile | |
| Audio Compression: | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM | |
| Simultaneous live view: | Up to 20-ch | |
| Interface | ||
|---|---|---|
| Alarm Input: | 2-ch Inputs (0-5V DC) | |
| Alarm Output: | 2-ch relay outputs, alarm response actions configurable | |
| Audio Input: | 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10% | |
| Audio Output: | Linear Level; Impedance: 600Ω | |
| General | ||
|---|---|---|
| Power Supply: | English | |
| Protection Level: | 24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4) | |
| Dimensions: | From -40 ° C to 65 ° C (-40 ° F to 149 ° F); Humidity: 90% or Less | |
| Weight: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
